Need help with your INTELLilight^® system?

Click here to find useful information on how to use and get the most from your INTELLilight^® system.

INTELLilight^®

THE FUTURE OF WORK LIGHT
Download INTELLilight® folder

TYRI INTELLilight^®
has recieved the Red Dot Award

TYRI INTELLilight® product image featuring a Red Dot Design Award 2025 winner badge, highlighting the advanced smart lighting system designed for industrial and off-road vehicles.

The Game Changer

At TYRI, we’ve always been keen to understand our clients working environments. That’s how we can keep creating innovative solutions that improve the operators working conditions while enhancing safety aspects in high risk industries. Derived from the needs and demands of a new generation of operators and after considerable development and testing, the sophisticated INTELLilight^® system is finally here. Ready to meet the demands of tomorrow.

Product image of TYRI smart LED work light; INTELLilight. Facing left and with the light turned off.

All INTELLilight^® Products

A Dream for Operators and Their Colleagues on Site.

When we took the decision to develop the work lighting system of the future, we asked our customers the following questions:

Do you always work in the same environment?

Do you always work under the same weather conditions?

Does your machine have more than one driver?

Do all your drivers have the same eye sight and preferences?

The answers was in most cases a clearly “no”. So why for decades has work lighting only been thought of as “one size fits all”?

With INTELLilight^® you have a patented and future safe system, that is not only flexible but also intelligent and that can be adapted to all the questions above.

Welcome to the future of work lighting.

Patented:
US 9 975 472 B2
EP 3 088 250 B1
JP 6 894 192 B2

Certificate:

SQGBL652

201-160415

2004/53/EU

Certificate:

2ASUU19-318

012-190012

2004/108/EG-directive

INTELLilight^® – the Smart Lighting System

Adjust Colour Temperature

INTELLilight^® allows operators to adjust the colour temperature to suit different working environments. Warmer light can improve visibility in conditions such as dust, snow, or fog, while cooler light enhances contrast and clarity in clearer environments. By adapting the light to the task and surroundings, operators can achieve better visibility and improved working comfort.

Adjust Brightness

INTELLilight^® allows operators to easily adjust brightness to suit different tasks and working conditions. The lighting can be controlled directly through the machine’s integrated controls or via the remote controller when using the multi-platform solution. In cloud-based systems, brightness can be managed through the app, Quick controller, or Remote controller. This flexibility helps reduce glare, improve visibility, and support a more comfortable working environment.

Group. Re-group

Use the app or other interface to group and regroup an indefinite number of light sources in a wireless mesh network for perfect lighting in every unique working situation.

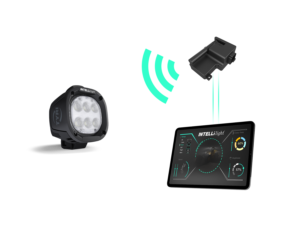

INTELLilight^® Systems

INTELLilight^® cloud and multi-platform systems cannot be paired with each other.

Cloud-based solution is a complete system that uses Android and iOS to operate completely externally, while Multi-platform can be integrated into the machine systems for more customized lighting control.

Cloud based solution

Stand alone solution

Just download the app & you are ready to go

Customized in App

Multi-platform solution

Integrated solution

Integrated in vehicle UI

Customized using CAN bus protocol J1939 CAN/Ethernet

INTELLilight^® Lamps

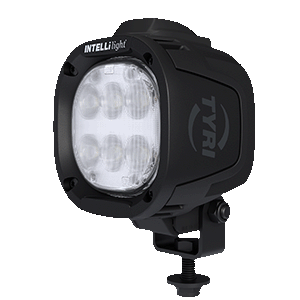

INTELLilight 1010

6 LEDs

2900 eLm

2700-6500 K

Go to Product

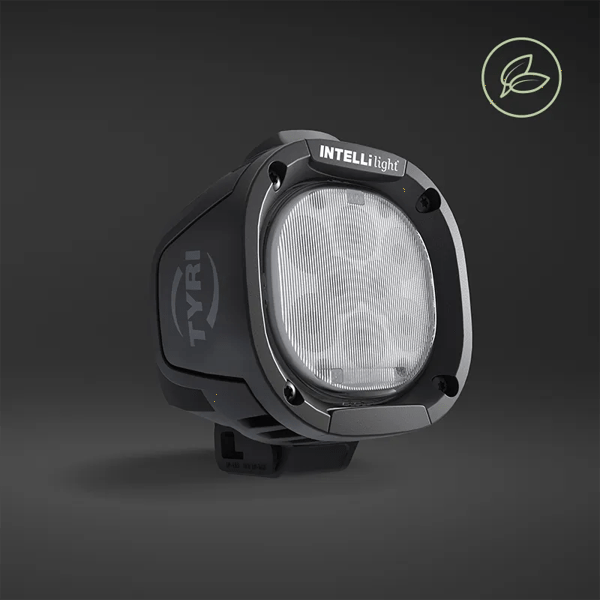

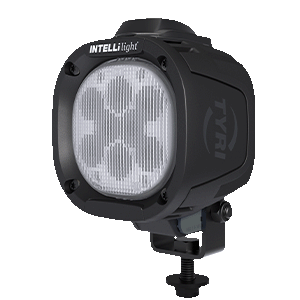

INTELLilight G2 1010

32 LEDs

4500 eLm

3000-7000 K

Remote Controllers

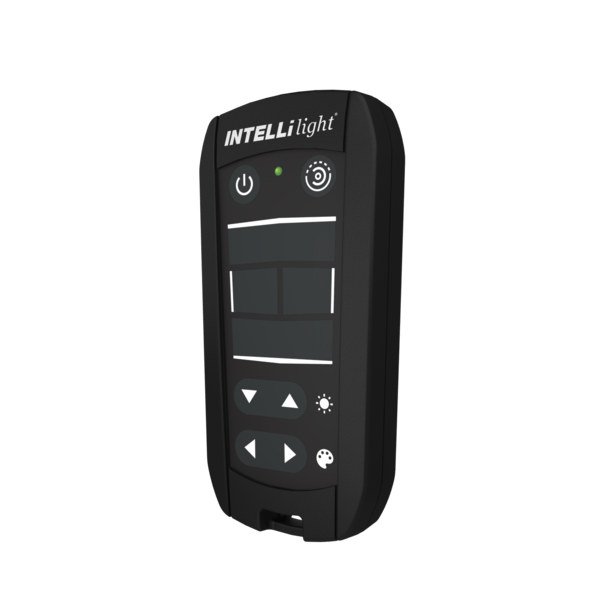

Remote Controller

Switch lights on or off

Adjust brightness

Fine-tune colour temperature

Go to Product

Quick Controller

Switch lights on or off

Adjust brightness

Fine-tune colour temperature

Only compatible with the Cloud Based system

Go to Product

Technical background

Bluetooth Low Energy Mesh

Bluetooth Low Energy Mesh, or BLE Mesh, is a specialized protocol that facilitates communication among multiple BLE devices by forming a mesh network. In this type of network, each node can relay messages to other nodes, enabling data to be transmitted across the network from one device to another until it reaches its intended destination.

How Do We Communicate With the Mesh Network?

Communication with the mesh network varies based on the equipment and interface used. For example, with our INTELLilight app, which is designed for mobile phones and tablets, we connect to the mesh network using Bluetooth Classic 4.0 or newer versions.

Customised Add Ons

A vision of features and functions to add to your intelligent lighting system!

Wired Mesh Network

In most cases, TYRI’s patented wireless system for INTELLilight^® is the optimal solution for our customers. Our wireless technology is highly flexible and can be integrated with multiple platforms. INTELLilight^® is also available as a wired CAN bus version, where each lamp features a built-in CAN bus module.

Branding Logo & Colour

Lighting can become an extension of machine identity. With customisable colours and illuminated branding elements, OEMs can strengthen their visual identity and create a distinctive machine presence while maintaining functional work lighting.

Voice Recognition

Voice recognition allows operators to instantly adjust lighting without removing their hands from the machine controls. With simple voice commands, the entire lighting setup can be changed in seconds, ensuring the right illumination for the task while improving safety and workflow efficiency.

Eye Tracking Camera

Eye tracking technology identifies exactly where the operator is looking in real time. The system can then prioritise illumination in that area while reducing light elsewhere. This ensures optimal visibility where it matters most while minimising glare and unnecessary light exposure around the machine.

Sensors

Sensors enable INTELLilight^® to automatically adapt lighting to the machine’s movements and working conditions. For example, when a wheel loader bucket is raised, sensors can dim specific lights to reduce glare from reflective surfaces like hydraulic cylinders. This creates a safer, more comfortable environment for the operator while maintaining optimal visibility.

Branding in App

INTELLilight^® can also extend branding into the digital experience. Customisable interfaces within the control app allow OEMs to integrate their visual identity and create a seamless, branded interaction between operator and machine lighting system.

Geo Data

By integrating geo data, INTELLilight^® can automatically adapt lighting based on location and environmental conditions. Information such as sunrise and sunset times or changing weather conditions can be used to optimise lighting settings and ensure consistent visibility throughout the workday.

AI

Artificial intelligence connects data from sensors, cameras, and machine inputs to create a self-learning lighting system. Over time, INTELLilight^® can automatically optimise lighting patterns for different tasks and environments, improving safety, productivity, and operator comfort.

INTERESTED IN STRATEGIC DESIGN? LET’S MEET

INTERESTED IN STRATEGIC DESIGN?
LET’S MEET

TYRI offers OEMs the opportunity to design and configure the best lighting system for each unique machine. Our engineering know-how and flexible manufacturing capabilities enable us to deliver tailored lighting solutions that solve complex lighting challenges and enhance safety. From early design stages through to production-ready integration, we work with OEMs to optimise performance and ensure reliability in the field.

Contact Christian Wadell
- Global R&D Manager -

Quality & Testing

INTELLilight^® is tested to same high standards as all TYRI work lights. To be approved by TYRI’s Test Lab, each product has gone through the following tests:
